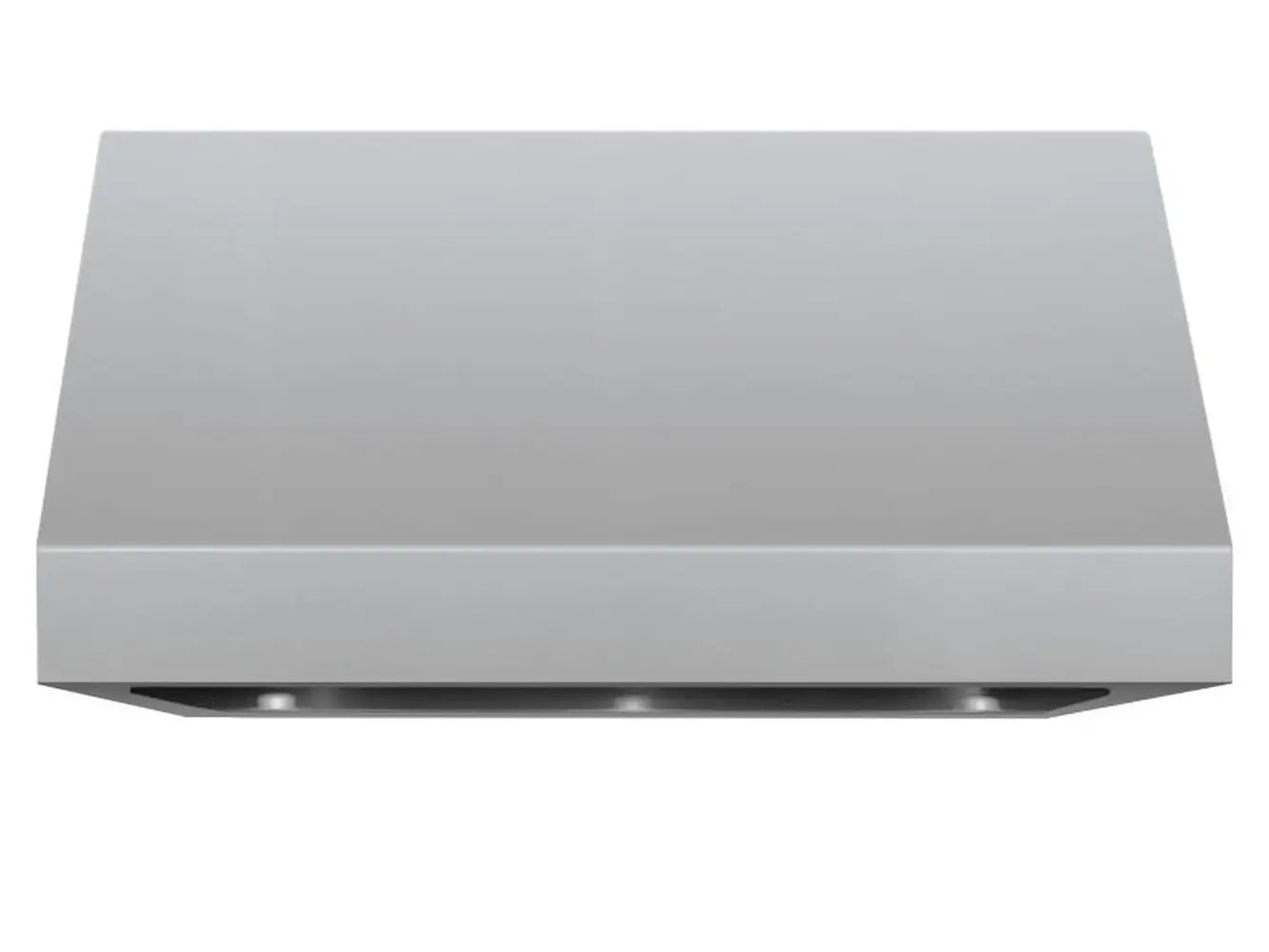

Summerset VH60-3 60" Outdoor Vent Hood – 2000 CFM
2,000 CFM Across 60 Inches — The VH60-3 Is Built for the Largest Outdoor Kitchen Setups
Dual motors, four LED lights, 62 dB quiet operation — the widest single-piece Summerset hood before the 72-inch, sized for large multi-burner grills, multi-appliance cook stations, and the most demanding covered spaces.
The Summerset VH60-3 60-Inch Outdoor Rated Vent Hood is the go-to specification for outdoor kitchens built around the largest grills and multi-appliance cooking stations. A 60-inch canopy extends 6 inches beyond each side of a 48-inch grill, or covers the full width of a layout that includes a grill alongside a side burner or power burner. Dual internal motors generate 2,000 CFM of airflow, pushing smoke, heat, and cooking odors out through dual 8-inch ducts before they accumulate under a roofline, pergola, or pavilion. Four integrated LED lights with a halogen dimmer cover the full 60-inch width evenly, four fan speeds dial airflow to cooking intensity, and commercial-grade cleanable baffles keep the system low-maintenance. Built from double-lined 304 stainless steel, outdoor-rated, made in the USA, and backed by Summerset's Gold Standard Lifetime Warranty.
Why the VH60-3 Belongs Above a Large or Multi-Appliance Outdoor Kitchen
When the cooking zone spans more than 48 inches — a wide grill, a grill-plus-side-burner layout, or a multi-station island — the VH60-3 provides the canopy width to cover it all with proper overhang, at the same dual-motor 2,000 CFM output as the smaller hoods.
Maximum Canopy Width — Covers a 48-Inch Grill With Full 6-Inch Overhang
A 60-inch canopy gives you 6 inches of overhang on each side of a 48-inch grill — the recommended minimum for full smoke capture. Over a 42-inch grill you get 9 inches per side. Over a multi-appliance station that spans 50–54 inches, the VH60-3 provides the full-width coverage that narrower hoods can't match.

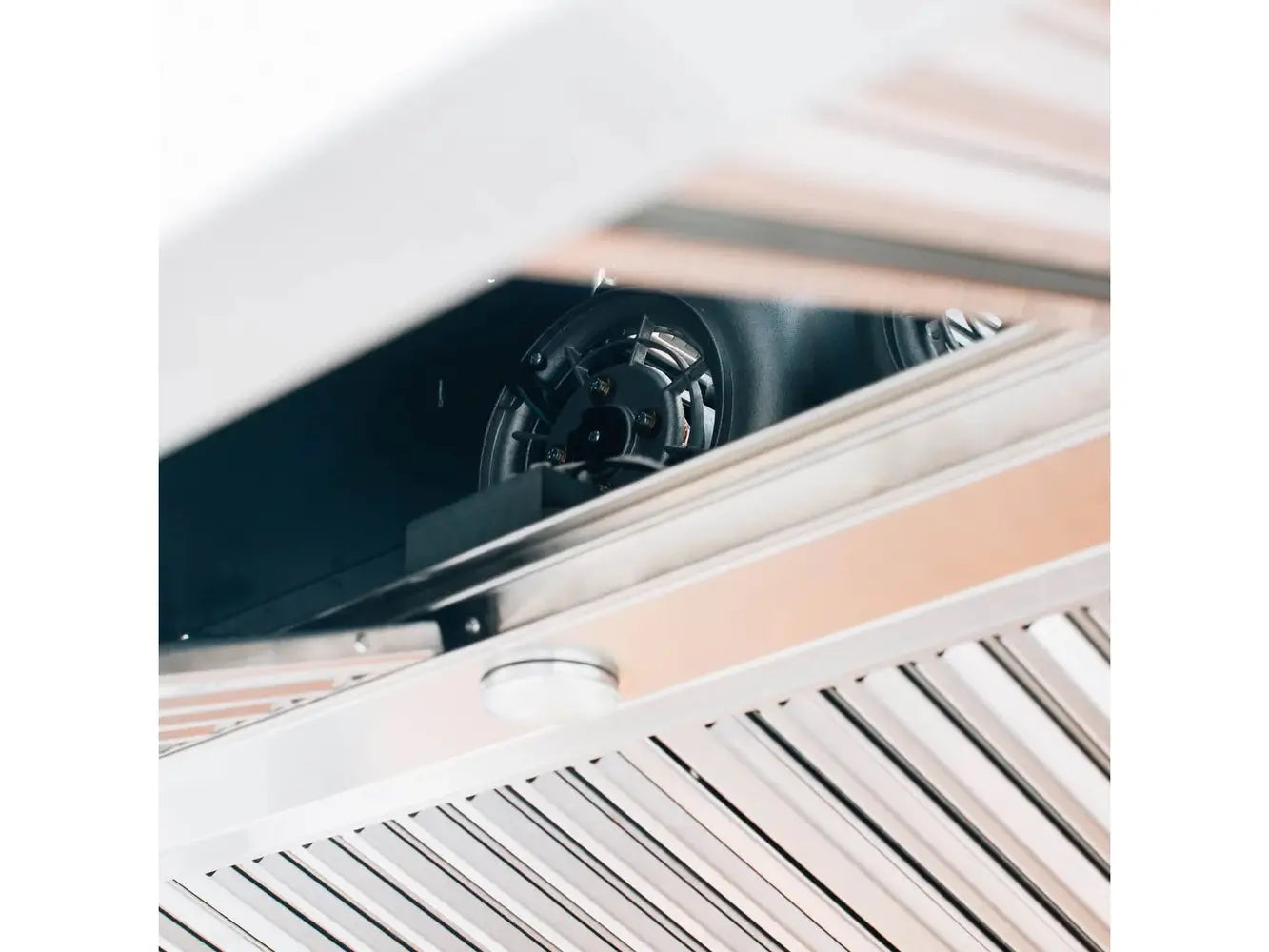

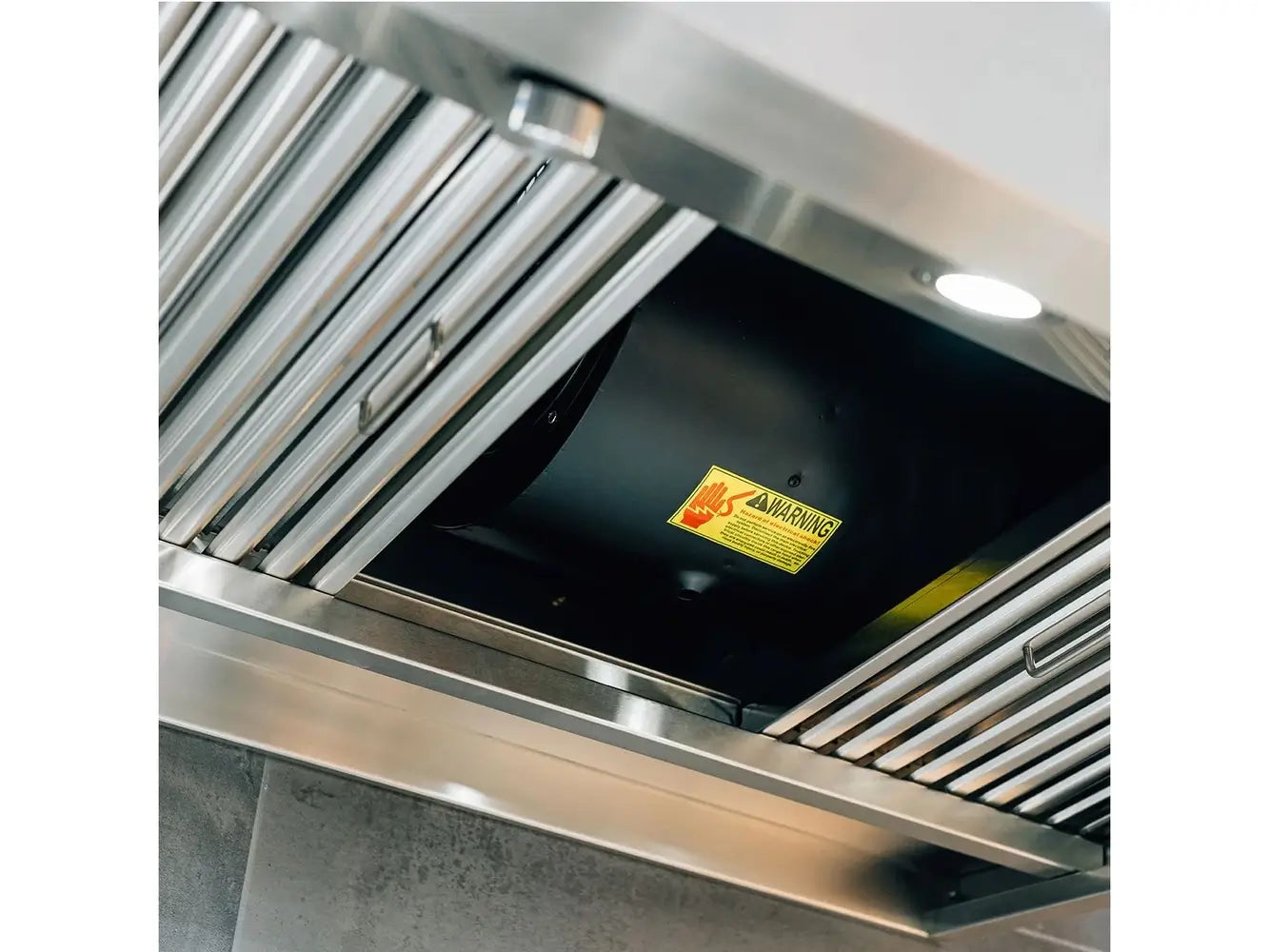

Dual Motors — Consistent Airflow Across a Wide Capture Zone
Two internal blower motors move 2,000 CFM across the full 60-inch width — the same total airflow as the VH42-3 and VH48-3, distributed across a wider capture area. The dual-motor system handles sustained high-output cooking without needing to run at maximum speed constantly.

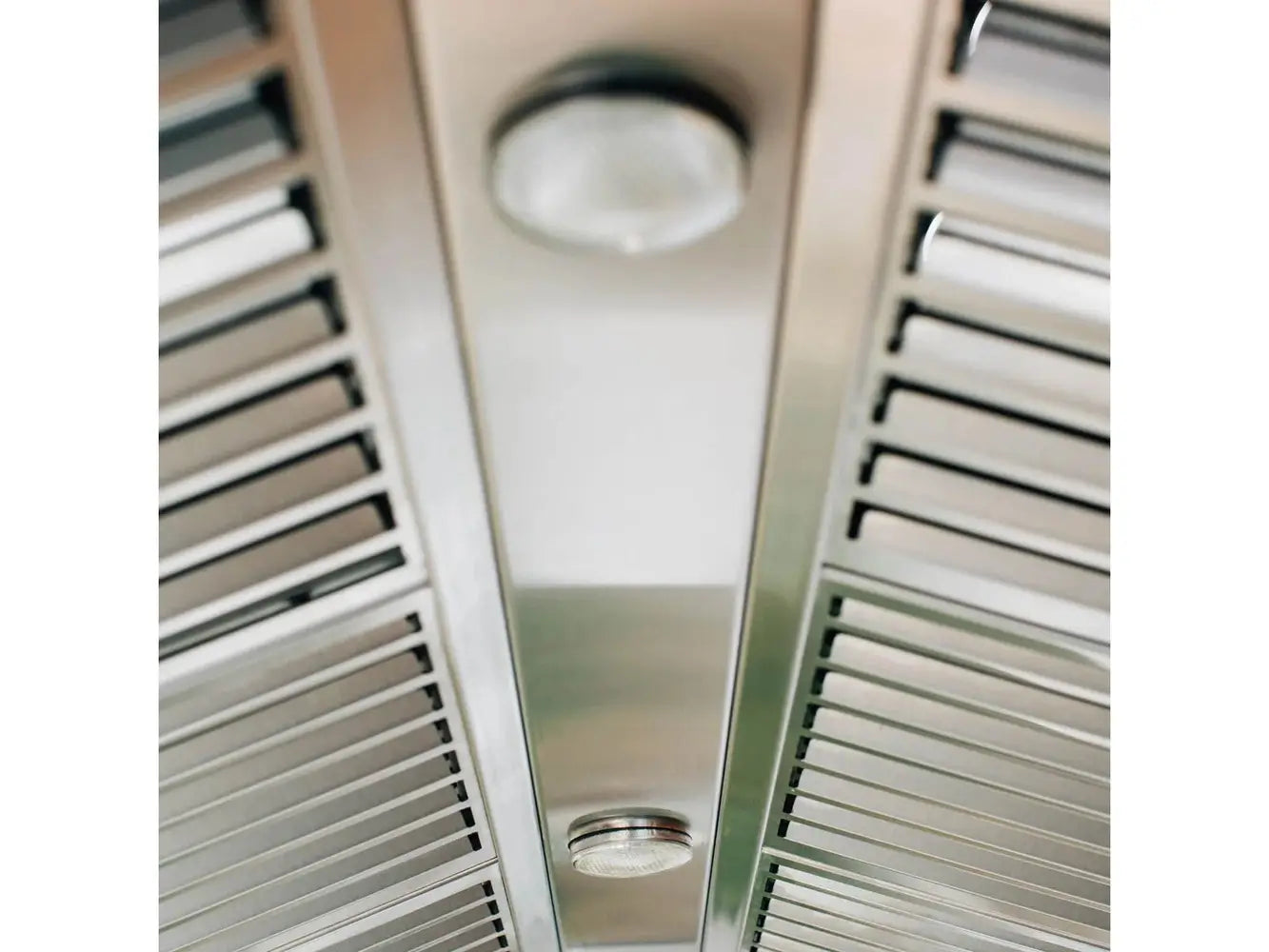

Four LED Lights — Even Illumination Across 60 Inches
Four integrated LED lights span the width of the canopy, providing even task illumination from one end of a large cook station to the other — no dark areas at the far ends of a wide grill or multi-appliance layout. The halogen dimmer adjusts from full task brightness down to ambient glow for evening entertaining.
Dual-Motor Power at Conversation Volume
At 62 decibels on full speed — roughly the level of background conversation or music — the VH60-3 moves serious air without overwhelming an outdoor entertaining space. Four fan speeds let you run quietly at lower intensity and ramp up only when high-heat or sustained cooking demands it.

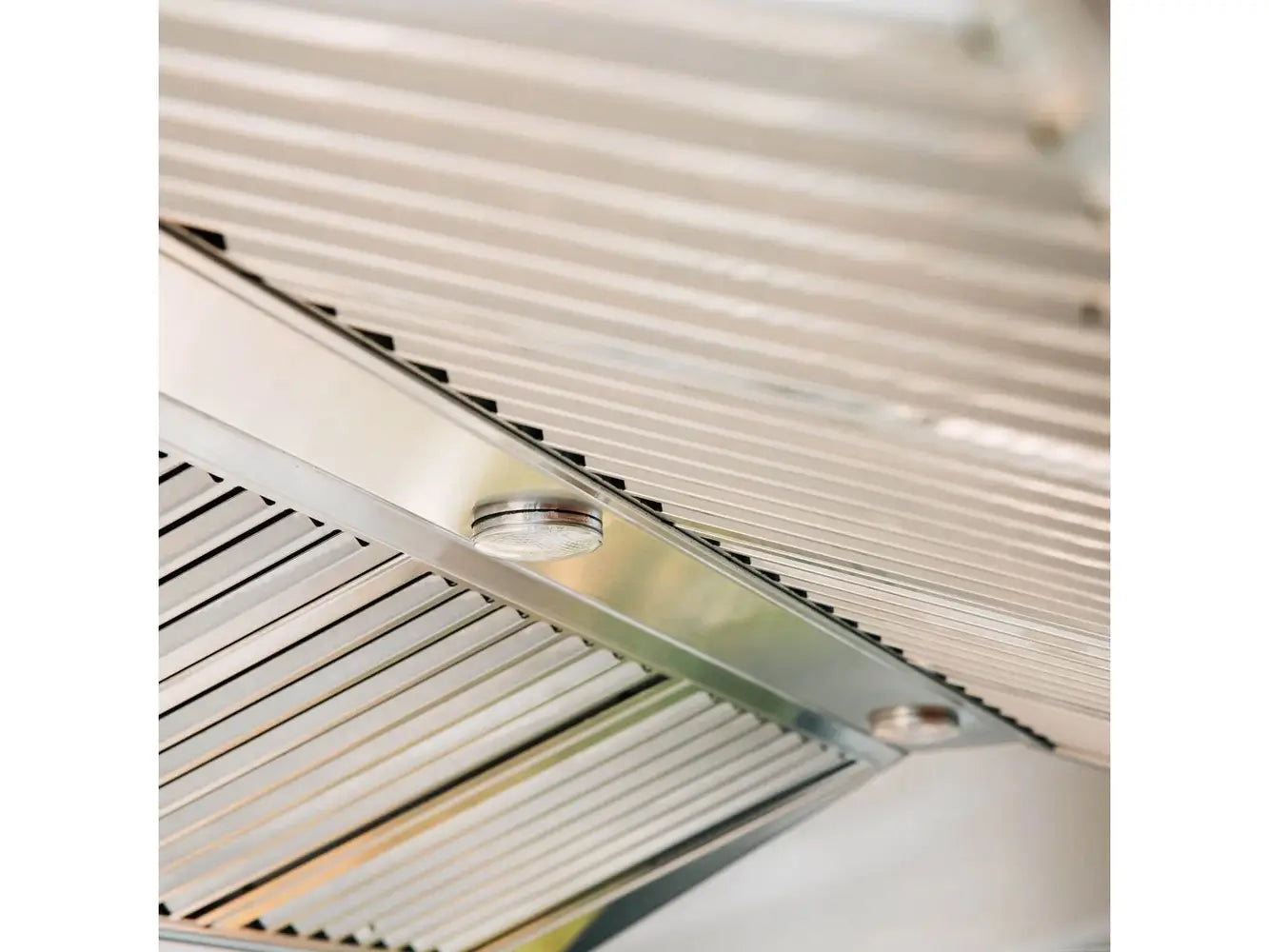

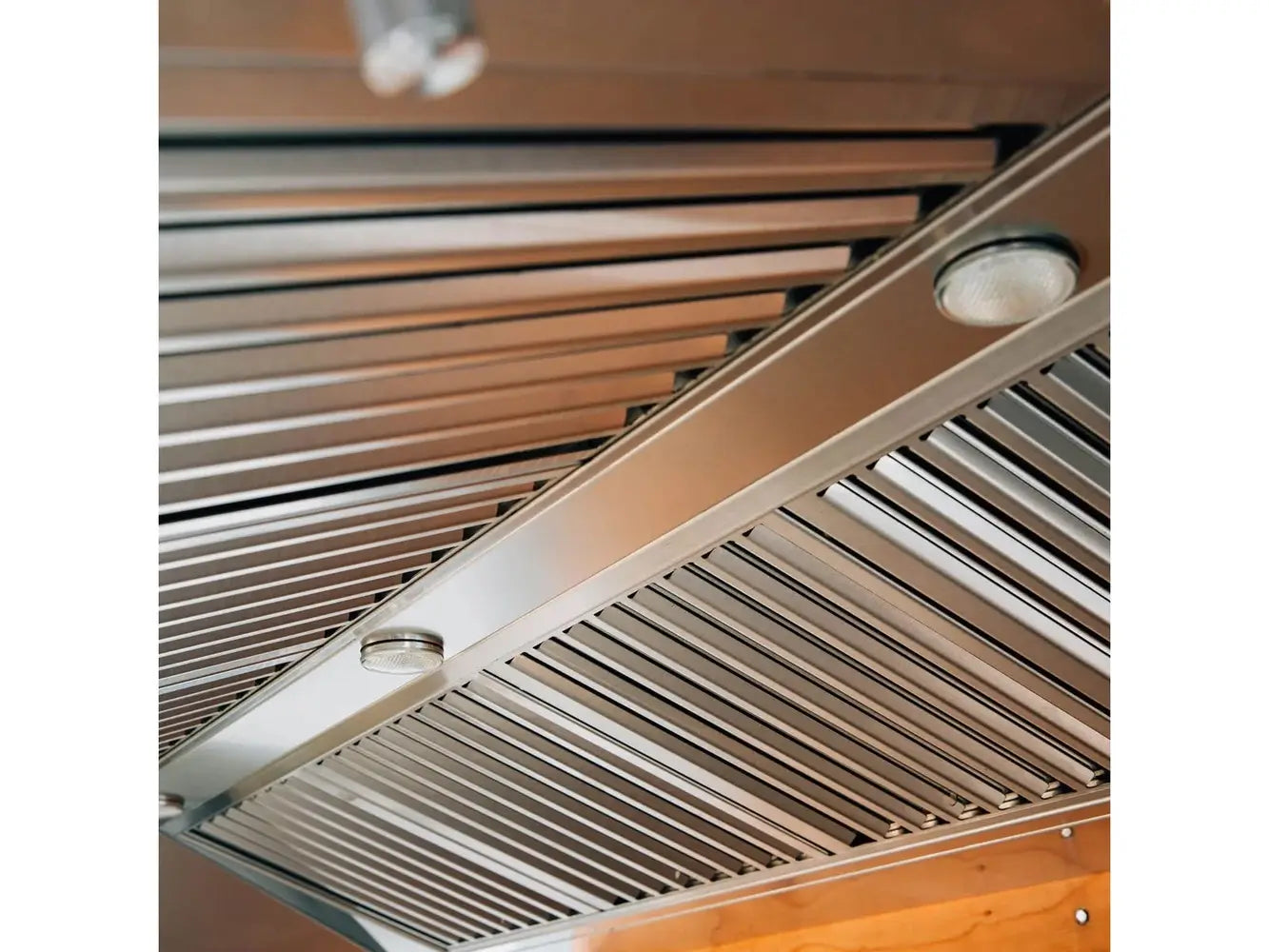

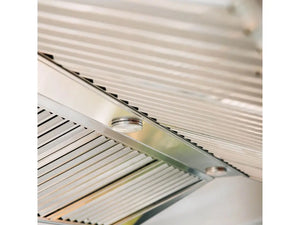

Commercial-Grade Cleanable Baffles — No Disposable Filters
Stainless steel grease baffles trap airborne grease before it reaches the ductwork and motors. Remove and clean by wiping or dishwasher — no recurring filter costs, and no gradual airflow restriction as a clogged disposable filter degrades performance over time.
Double-Lined 304 Stainless — Outdoor-Rated, Summerset-Matched
Double-lined 304 stainless steel throughout — outdoor-rated, corrosion-resistant, and matched to the Summerset grill lineup in material grade and finish. The double-wall body adds structural rigidity across the wider 60-inch span and protects overhead structures from conducted heat during extended cooking sessions.
VH48-3 vs. VH60-3 — When to Step Up to 60 Inches
Both hoods produce 2,000 CFM from dual motors with four LED lights and identical features. The decision is entirely about canopy width and the cooking station it needs to cover. The VH48-3 covers a 42-inch grill with adequate overhang (3 inches per side) or a 36-inch grill with ideal overhang (6 inches per side). The VH60-3 covers a 48-inch grill with full 6-inch overhang per side, or accommodates multi-appliance stations that span 50–54 inches. If your island includes a Summerset TRL Pro 40, Sizzler 40, or Quest 42 alongside a power burner or side burner, the combined cooking width almost certainly calls for the VH60-3. When in doubt about width, sizing up is always the right call in outdoor ventilation — more capture area at the same CFM is strictly better.

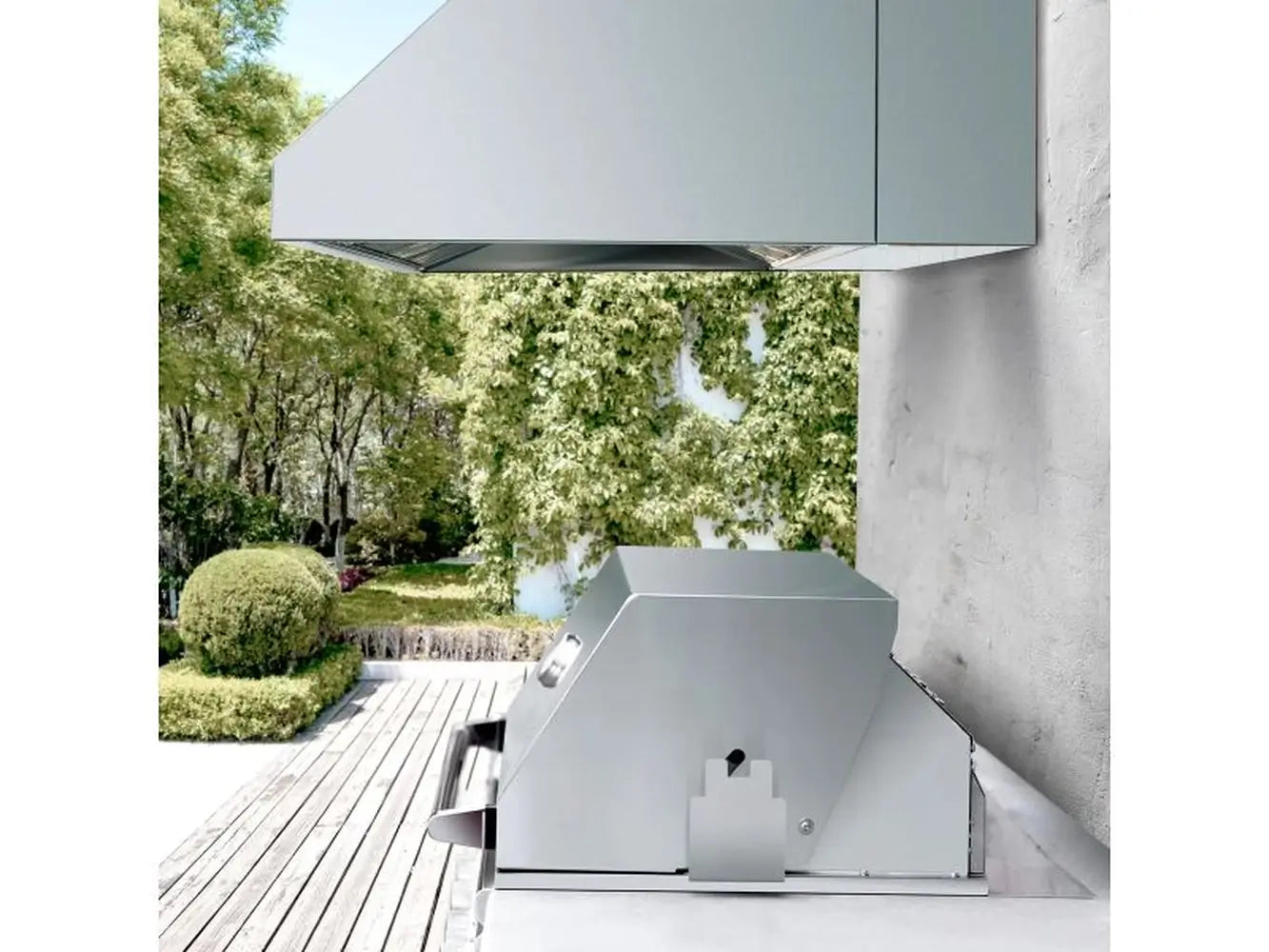

Installation Overview — Wall Mount, Ducted, 120V / 15A
The VH60-3 is a wall-mount canopy hood supported by the wall structure behind the cooking station. The included adjustable mounting bracket simplifies installation alignment and adds wall clearance. Venting runs through dual 8-inch duct connections to the exterior via the wall or ceiling. A standard 120V / 15-amp electrical circuit is required for the dual blower motors, LED lights, and halogen dimmer — an accessible outlet behind or within the island structure is needed before installation begins. Summerset offers optional spacer brackets and duct covers sized for the 60-inch hood for builds requiring additional reach or a finished duct appearance. Mount the lower edge of the hood 32–36 inches above the cooking grates for optimal smoke capture and proper clearance from the cooking surface.
Who the Summerset VH60-3 Is For
- Builders pairing with a 48-inch grill who want full 6-inch overhang per side — the 60-inch canopy is the minimum width that provides the recommended overhang over a 48-inch cooking surface.
- Multi-appliance outdoor kitchens — a grill alongside a side burner, power burner, or griddle extends the active cooking zone beyond 42 or 48 inches; the VH60-3 covers the full combined width where smaller hoods leave the outer appliances unventilated.
- Large or enclosed covered structures — pavilions with solid roofs, fully enclosed covered patios, and outdoor kitchens with low soffits all benefit from the wider capture zone the VH60-3 provides alongside 2,000 CFM output.
- Builders who want maximum overhang on a 42-inch grill — 9 inches of canopy overhang per side on a 42-inch grill delivers exceptional smoke capture even during high-heat, high-smoke searing sessions.
- Long-session and year-round grillers — extended cooking with multiple burners at high output produces sustained smoke volume; the dual-motor system handles it without running at full capacity the entire session.
- Builds where the VH72-2 would be oversized — the VH60-3 is the largest practical single-piece Summerset hood for most island layouts before stepping into the 72-inch configuration for truly expansive multi-station kitchens.
What's Included
VH60-3 Vent Hood
- Summerset VH60-3 60-Inch outdoor rated vent hood
- Dual internal blower motors (2,000 CFM combined)
- Four integrated LED lights with halogen dimmer control

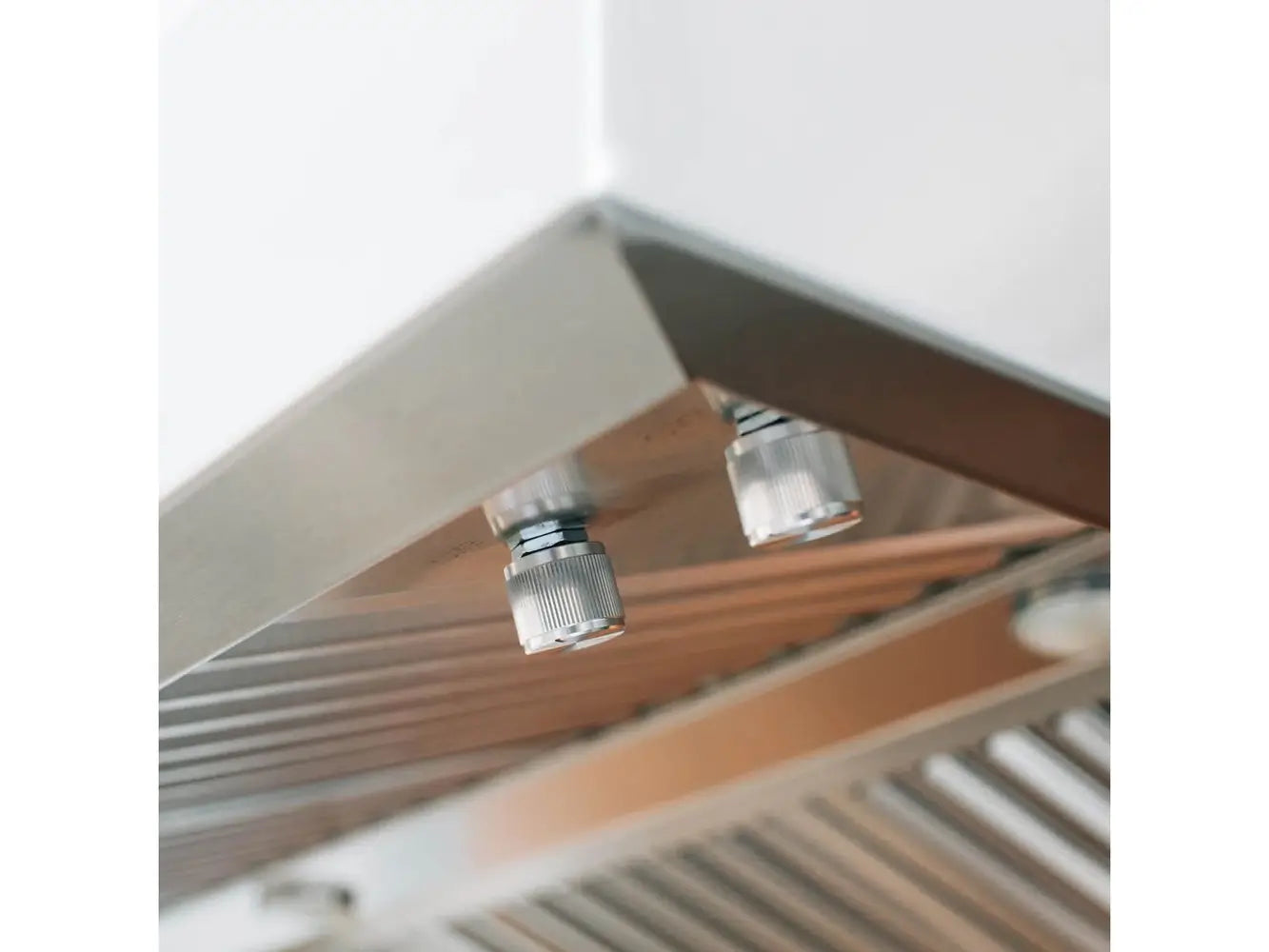

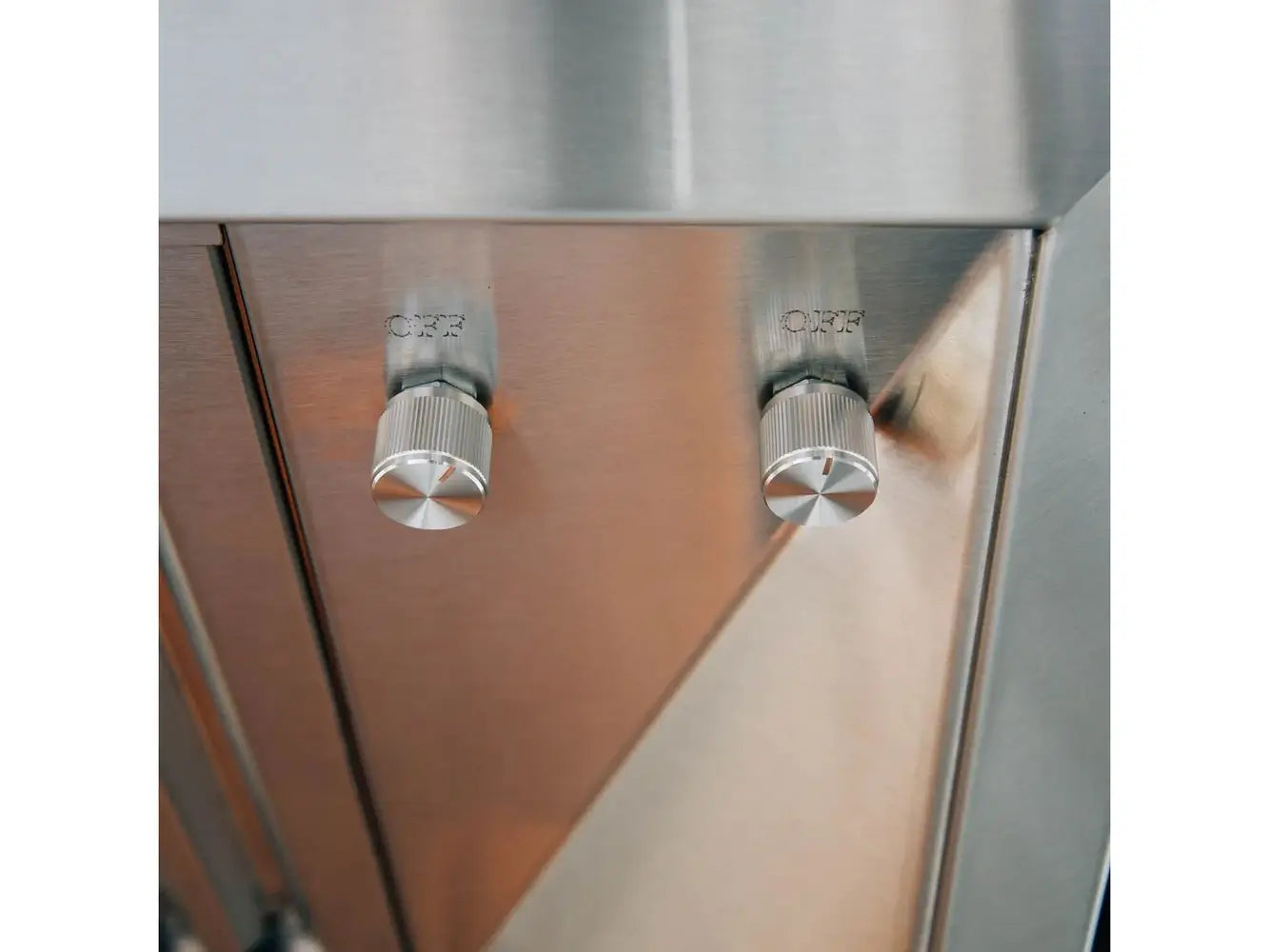

- 4-speed fan control
- Commercial-grade cleanable grease baffles
- Dual 8-inch duct connections
- Adjustable mounting bracket (included)
Optional Accessories (Sold Separately)
- 12-Inch Duct Cover for 60-Inch Vent Hood — conceals ducting above the hood
- 4-Inch Spacer Bracket for 60-Inch Vent Hood — extends hood reach from wall
- 8-Inch Spacer Bracket for 60-Inch Vent Hood — extends hood reach further
- Spacer Template for 60-Inch Vent Hood — simplifies mounting alignment
Summerset VH60-3 Specifications
General
| Brand | Summerset Grills |
|---|---|
| Model | VH60-3 (equivalent to VH60-2 at most other authorized dealers — same specs, likely a revised production run) |
| Construction | Double-Lined 304 Stainless Steel; outdoor rated |
| Approved for Outdoor Use | Yes |
| Made in USA | Yes |
Performance
| Blower Type | Dual internal motors |
|---|---|
| CFM | 2,000 CFM |
| Fan Speeds | 4 adjustable speed settings |
| Noise Level | 62 dB |
| Lighting | 4 LED lights + halogen dimmer control |
| Grease Management | Commercial-grade cleanable baffles (no disposable filters) |
Installation & Electrical
| Mounting Type | Wall-mount canopy |
|---|---|
| Venting | Ducted — dual 8-inch duct connections |
| Electrical | 120V / 15A (standard household circuit required) |
| Mounting Bracket | Adjustable mounting bracket (included) |
| Recommended Grill Pairing | Designed for grills up to 48 inches; extends 6" beyond each side of a 48-inch grill, or spans multi-appliance stations up to ~54 inches wide |
| Mounting Height | 32"–36" above cooking grates (lower edge of hood) |
Dimensions & Weight
| Overall Width | 60" (152.4 cm) |
|---|---|
| Overall Depth | 30" (76.2 cm) |
| Overall Height | 18" (45.7 cm) |
| Weight | 153 lbs |
Warranty & Buyer Assurance
- Manufacturer's Warranty — Covered by Summerset's Gold Standard Lifetime Warranty on stainless steel construction, honored directly by Summerset. Motors, lighting, and electronic components carry a three (3) year warranty. Labor is not included. Warranty must be registered within 30 days of purchase with proof of purchase and photo documentation.
- Free Shipping on orders over $100 to the contiguous 48 states.
- 45-Day Returns — Deck & Den's 45-day return window gives you time to confirm the VH60-3 is the right fit before you commit.
- Price Match Available — found a lower authorized-dealer price? Contact us and we'll match it.
Manuals & Documents
- VH60-3 Vent Hood User Manual (PDF) — installation, operation, and maintenance guide (covers VH36-2, VH42-2, VH48-2, and VH60-2).
- VH60-3 Line Drawing (PDF) — engineering line drawing with full dimensional and mounting reference.
Summerset VH60-3 — Frequently Asked Questions
How does the VH60-3 differ from the VH48-3?
Both hoods have dual internal motors producing 2,000 CFM, four LED lights with halogen dimmer, four fan speeds, and 62 dB operation — identical in every spec except width. The VH60-3 is 60 inches wide vs 48 inches on the VH48-3. That extra 12 inches gives you full 6-inch overhang per side on a 48-inch grill (the VH48-3 provides 0 inches of overhang per side on a 48-inch grill), or covers multi-appliance stations that span 50–54 inches wide.
What grill or station sizes does the VH60-3 cover?
The VH60-3 provides 6 inches of overhang per side over a 48-inch grill — the recommended minimum. Over a 42-inch grill you get 9 inches per side. It can also cover a multi-appliance cooking station (grill + side burner, grill + power burner) where the combined active cooking width is up to about 54 inches. For stations wider than 54 inches, step up to the VH72-2.
How high above the grill should the VH60-3 be mounted?
Mount the lower edge of the VH60-3 between 32 and 36 inches above the cooking grates. This provides proper clearance from heat while keeping the hood close enough to the smoke plume for effective capture. Confirm placement against the user manual and local codes before installation.
Does the VH60-3 require electricity?
Yes. The VH60-3 runs on a standard 120V / 15-amp household circuit. An accessible electrical outlet behind or within the island structure is required for the dual blower motors, LED lights, and halogen dimmer.
Does the VH60-3 need to vent to the exterior?
Yes — the VH60-3 is a ducted hood that exhausts through dual 8-inch duct connections to the exterior. It is not a recirculating hood; a clear duct path through the wall or ceiling to the outside is required for proper operation.
Is 2,000 CFM enough for a 60-inch outdoor kitchen?
For most outdoor kitchen setups with a grill up to 48 inches in a covered space, 2,000 CFM at 60 inches of canopy width is appropriate. Very enclosed structures with low ceilings, or stations that span multiple high-BTU appliances over a very wide area, may benefit from the VH72-2 for additional width. Contact us if you're unsure — ceiling height, enclosure degree, and total active cooking width all factor into the right specification.
How do I clean the baffles?
The commercial-grade stainless steel baffles remove from the hood and can be wiped down or run through a dishwasher. No filter replacements are needed. Clean based on cooking frequency — after heavy grilling or extended smoking sessions is a good habit to maintain consistent airflow.
What optional accessories are available for the VH60-3?
Summerset offers duct covers, 4-inch and 8-inch spacer brackets, and a spacer template — all sized specifically for the 60-inch hood. Duct covers conceal ducting above the hood for a finished appearance; spacer brackets extend the hood's reach from the wall when additional clearance is needed. Contact us for current availability and pricing.
What is Summerset's warranty on the VH60-3?
The VH60-3 is covered by Summerset's Gold Standard Lifetime Warranty on stainless steel construction. Motors, lighting, and all electronic components carry a three-year warranty. Labor is excluded. Register within 30 days of purchase with proof of purchase and photo documentation.
What shipping and return policies apply at Deck & Den?
Deck & Den offers free shipping on orders over $100 to the contiguous 48 states. The VH60-3 is covered by Deck & Den's 45-day return policy. Price matching is available — contact us with a qualifying authorized-dealer price and we'll match it.
